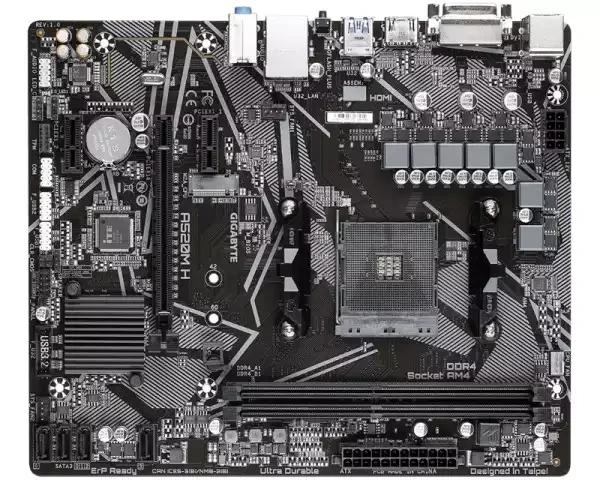

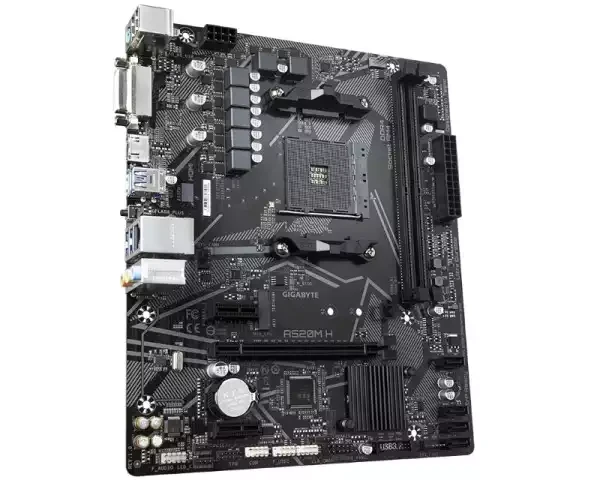

Matična ploča AM4 Gigabyte A520M H RGB DVIHDMIM.2
Šifra: -1
- Proizvod iz grupe: Matične ploče
- Proizvođač: Gigabyte
- Dostupna količina: 10
Maloprodajna cena:
7.181,00 rsd.
WebCena:
7.181,00 rsd.
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® A520 |
| Format ploče | Micro ATX |
| Podržani procesori | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
| Podržana memorija | DDR4 |
| Memorija | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules** ECC memory (ECC mode) support varies by CPUSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Slotovi za proširenje | CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Storage | CPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10 |
| Mrežna karta | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
| Zvučna karta | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| USB | CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

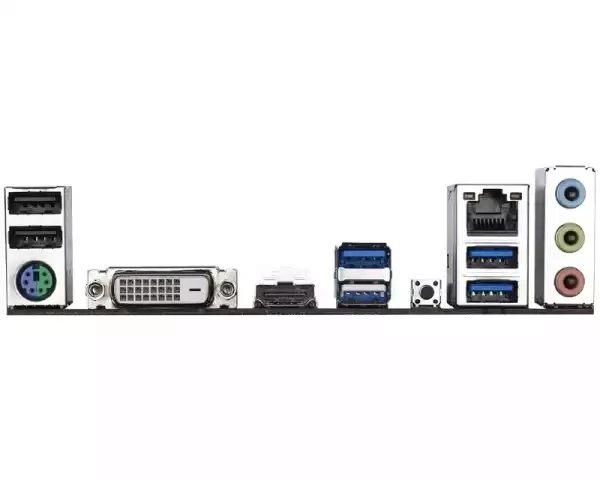

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port3 x audio jacks |
| Interni konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x chassis intrusion header1 x Clear CMOS jumper |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
