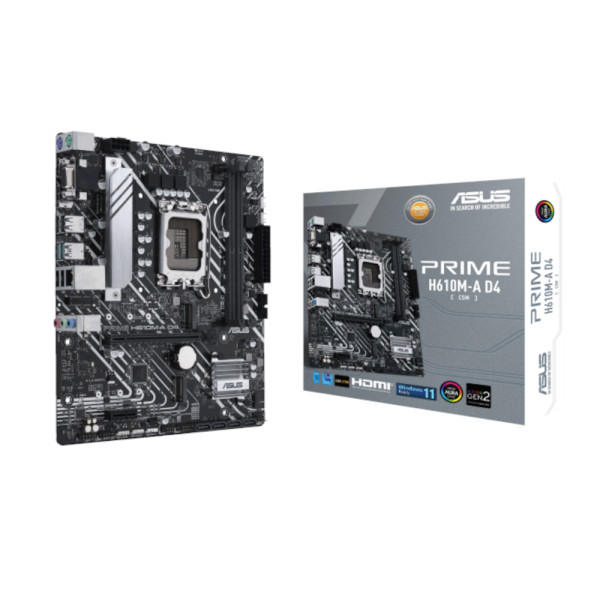

MB s1700 ASUS PRIME H610M-A D4-CSM

Asus
Šifra: -1
WebCena: 9.964,00 rsd.
 Količina
Tip procesora:Intel
Podnožje:Intel® 1700
Čipset:Intel® H610
Format ploče:Micro ATX
Podržana memorija:DDR4
Podržani procesori:Intel LGA1700 podnožje za 13-tu Gen Intel Core Procesora & 12-tu Gen Intel Core, Pentium Gold i Celeron Procesora Podržava Intel Turbo Boost Technology 2.0 i Intel Turbo Boost Max Technology 3.0
Memorija:2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memorija Dual Channel Memory Architecture Podržava Intel Extreme Memory Profile (XMP)
Slotovi za proširenje:Intel 13-ta & 12-ta Gen Procesora 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot Intel 12-ta Gen Procesora 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Skladište:Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (podržava PCIe 3.0 x4 mod) M.2_2 slot (Key M), type 2242/2260/2280 (podržava PCIe 3.0 x2 mod) 4 x SATA 6Gb/s porta
Mrežna karta:Intel 1Gb Eternet Wireless i Bluetooth: V-M.2 slot (Key E, CNVi & PCIe)
Zvučna karta:Realtek 7.1 Surround Sound High Definition Audio CODEC
USB:2 x USB-A 3.2 Gen 2 porta 4 x USB-A 2.0 1 x USB 3.2 Gen 1 header podržava dodatna 2 USB 3.2 Gen 1 porta 2 x USB 2.0 headera podržavaju dodatna 3 USB 2.0 porta

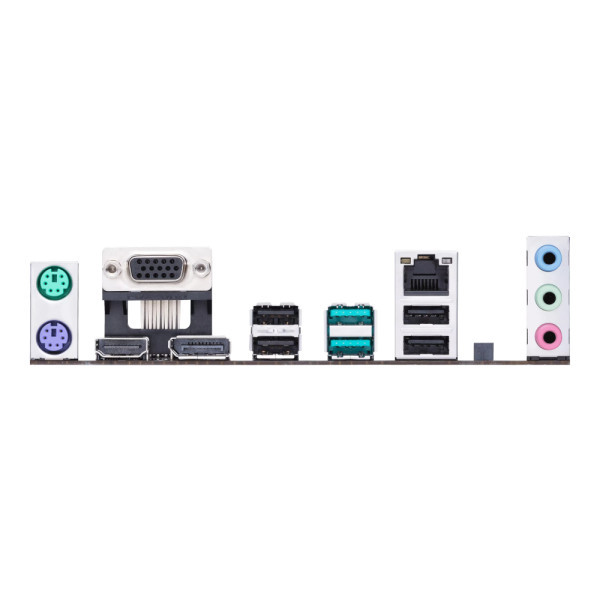

Konektori na zadnjoj strani:2 x USB-A 3.2 Gen 2 4 x USB-A 2.0 1 x DisplayPort 1 x HDMI 1 x VGA 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Eternet port 3 x Audio porta 1 x PS/2 port za tastaturu 1 x PS/2 port za miša
Interni konektori:1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headera 1 x 24-pin Main Power konektor 1 x 8-pin +12V Power konektor 2 x M.2 slota (Key M) 4 x SATA 6Gb/s porta 1 x USB 3.2 Gen 1 header podržava dodatna 2 USB 3.2 Gen 1 porta 2 x USB 2.0 headers podržavaju dodatna 3 USB 2.0 porta 3 x Addressable Gen 2 headera 2 x AURA RGB headera 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
