Hardware |
Model |
M1300 1.0 |
CPU |
880 MHz Dual-Core, MIPS1004Kc |
Flash/ROM |
16 MB (128 Mbit) NOR |
DDR/RAM |
128 MB (1 Gbit) DDR3 |
Wi-Fi brzina 5 GHz |
867 Mbps |
Wi-Fi brzina 2.4 GHz |
300 Mbps |
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
Wi-Fi antene |
4× Internal |
FEM/PA/LNA |
5 GHz: 2× Internal, 2.4 GHz: 2× Internal |
Beamforming |
True |
Maksimalni domet |
170 m (558 ft) u otvorenom prostoru |
Wall Performance |
2 drvena zida <10 cm ili 1 beton <20 cm |
Indoor Coverage |
2 Pack: 160 m² (1700 sq ft), 3 Pack: 220 m² (2400 sq ft) – za Mesh satelite |
Gigabit RJ45 Ports |
2 (Port 1 WAN po default-u; Mesh satelit: svi LAN) |
LED indikatori |
System, Speed/Link/ACT Ethernet Port |
Fizikalni tasteri |
WPS Button, Reset Button |
Napajanje |
DC Jack, 12V?1A |
Adapter u pakovanju |
Input: 100–240V~, 50/60Hz; Output: 12V?1A |
Radna temperatura |
0 °C ~ 40 °C |
Temperatura skladištenja |
-40 °C ~ 70 °C |
Radna vlažnost |
10% ~ 90% bez kondenzacije |
Vlažnost skladištenja |
5% ~ 95% bez kondenzacije |
Certifikati |
FCC, CE |
Instalacija |
Desktop |
Dimenzije |
Φ110 × 154.5 mm (Φ4.33 × 6.08 inches) |

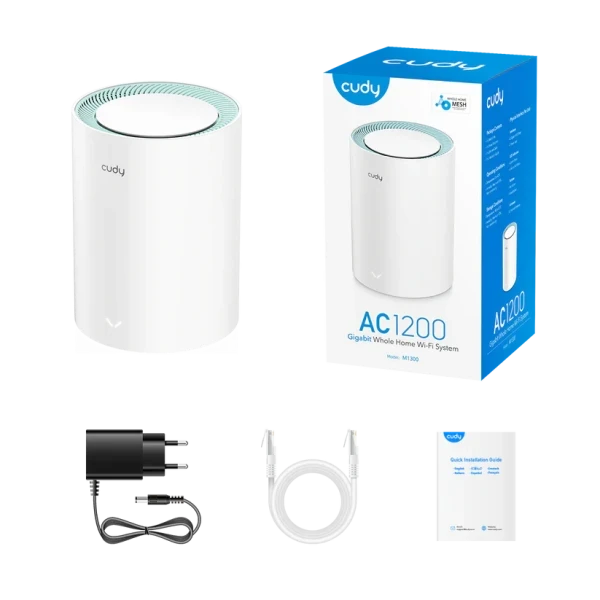

Paket sadrži |
M1300, Power Adapter, Ethernet Cable, Installation Guide |
Software |
VPN Client |
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
VPN Performance |
OpenVPN Client (UL/DL): 22 / 24.7 MbpsOpenVPN Server (UL/DL): 22 / 20.9 MbpsWireGuard Client (UL/DL): 142 / 233.9 MbpsWireGuard Server (UL/DL): 213 / 152 Mbps |
DNS Options |
DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS |
DNS Providers |
Cloudflare, Google, Quad9, Custom |
Wake on LAN |
True |
Online Detection |
True |
Max Concurrent VPN Tunnels |
IPSec: 20PPTP/L2TP: 16OpenVPN: 16 |
Parental Controls |
Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter |
All Devices Management |
Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding |
Per-Device Management |
Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename |
Content Management |
Domain Filter, IP Filter |
LED Control |
True |
Local Control Method |
Config Web Page, App Control |
Remote Control Method |
Config Page via HTTPS, App Control |
TR-069 Support |
TR069/TR098/TR111/TR143/TR181 |
Firmware Upgrade |
Local Update, App (Over the Air), Online Update |
Reliability Features |
Timed Reboot, Backup and Restore |
Diagnostic Tools |
Diagnosis, Ping, Traceroute, NSLookup, System Log |
Languages Supported |
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
Dashboard Panels |
Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
Charts / Metrics |
Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
