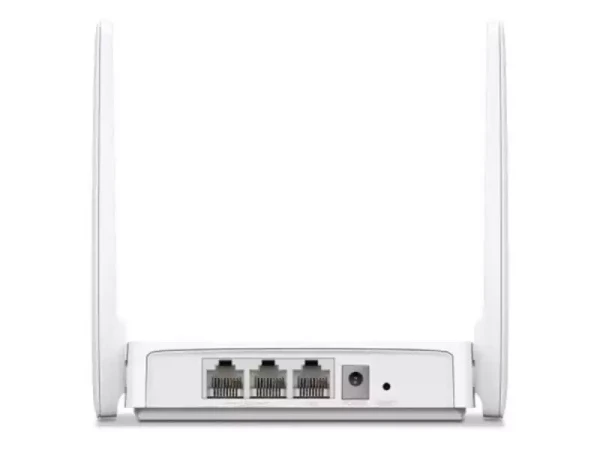

| Ethernet Ports | 2*10/100Mbps LAN Ports & 1*10/100Mbps WAN Port |
| Button | Reset Button |
| External Power Supply | 5V/0.6A |
| Dimensions (W X D X H) | 114 mm × 94 mm × 26 mm |
| Antenna Type | 2 * 5dBi |
| Package Contents | 300Mbps Wireless N Router ( MW302R ) Power Adapter Quick Installation Guide Ethernet Cable |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | • 11n: Up to 300Mbps (Dynamic) • 11g: Up to 54Mbps (Dynamic) • 11b: Up to 11Mbps (Dynamic) |
| Reception Sensitivity | • 270M: -73dBm@10% PER • 130M: -75dBm@10% PER • 54M: -77dBm@10% PER • 11M: -90dBm@10% PER • 6 M: -94dBm@10% PER • 1 M: -96dBm@10% PER |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridging |
| Wireless Security | WPA-PSK / WPA2-PSK |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| DHCP | Server |
| Port Forwarding | Virtual Server, UPnP, DMZ |
| Management | Access Control, Local Management, Remote Management |
| Firewall Security | IP and MAC Address Binding |
| Guest Network | 2.4GHz Guest Network |
| Protocols | IPv4, IPv6 |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing |
| Transmission Power | <20dBm (EIRP) |
